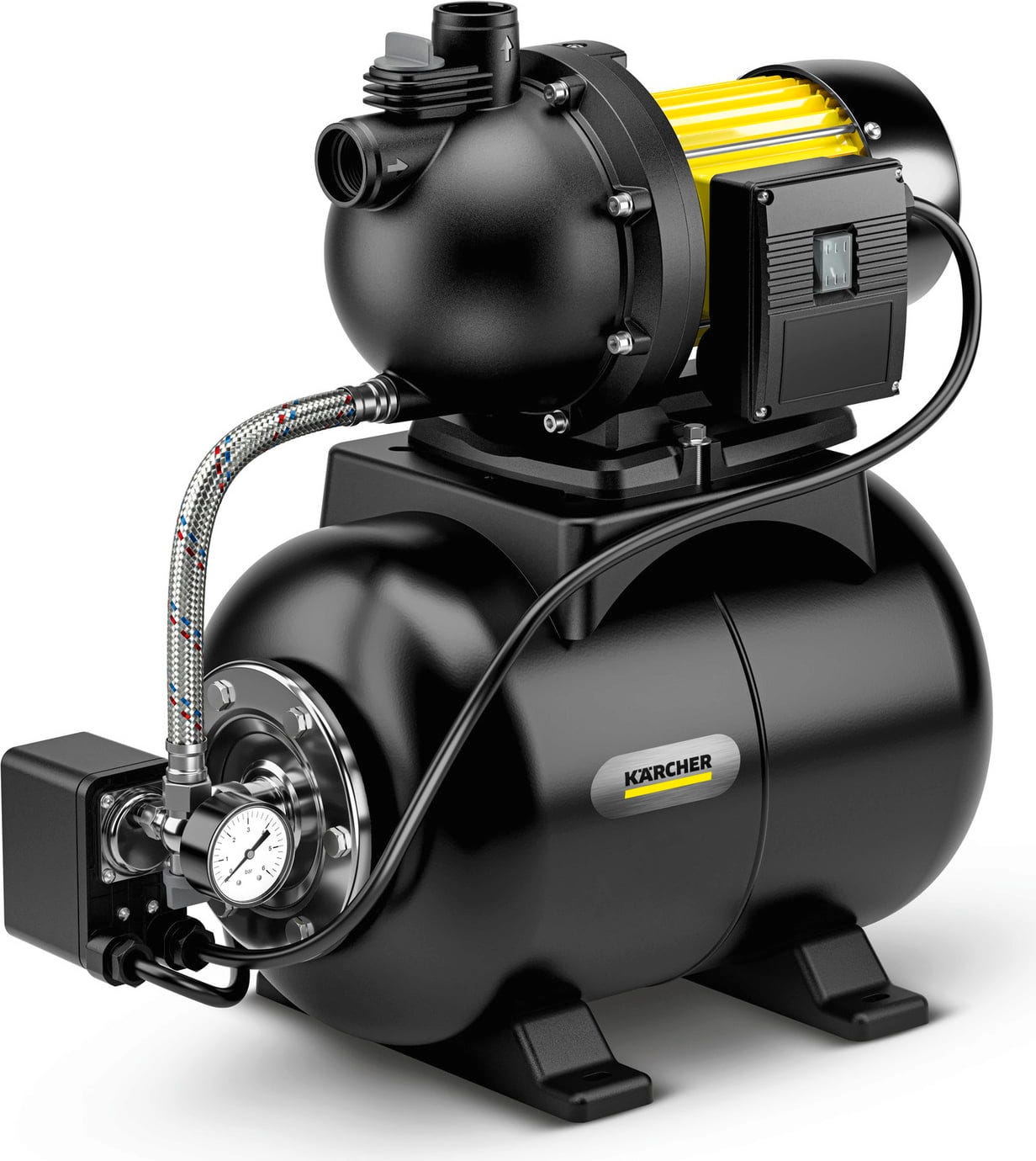

BP 4.900 Domestic Water Supply System

The Domestic Water Supply System enables automatic use of water for non-potable purposes from alternative water sources in your home. Whether connected to a well or cistern, it reliably supplies water to multiple points of use throughout your home. With a flow rate of up to 4,900 l/h, a delivery head of up to 50 m and a maximum pressure of 5 bar, the system is also suitable for homes with several water outlets.

The integrated 24-litre pressure tank maintains consistent pressure within the domestic water system and reduces frequent pump cycling. This enables the system to be used reliably for toilet flushing, as well as for supplying water to a washing machine, showers and for garden irrigation. With a suction lift of up to 8 metres, the system is ideal for using well water or cistern water in the home. Robust pump components, integrated thermal protection and a non-return valve ensure safe and long-lasting operation in everyday use.

Features:

• Integrated pressure equalisation tank: 24 l

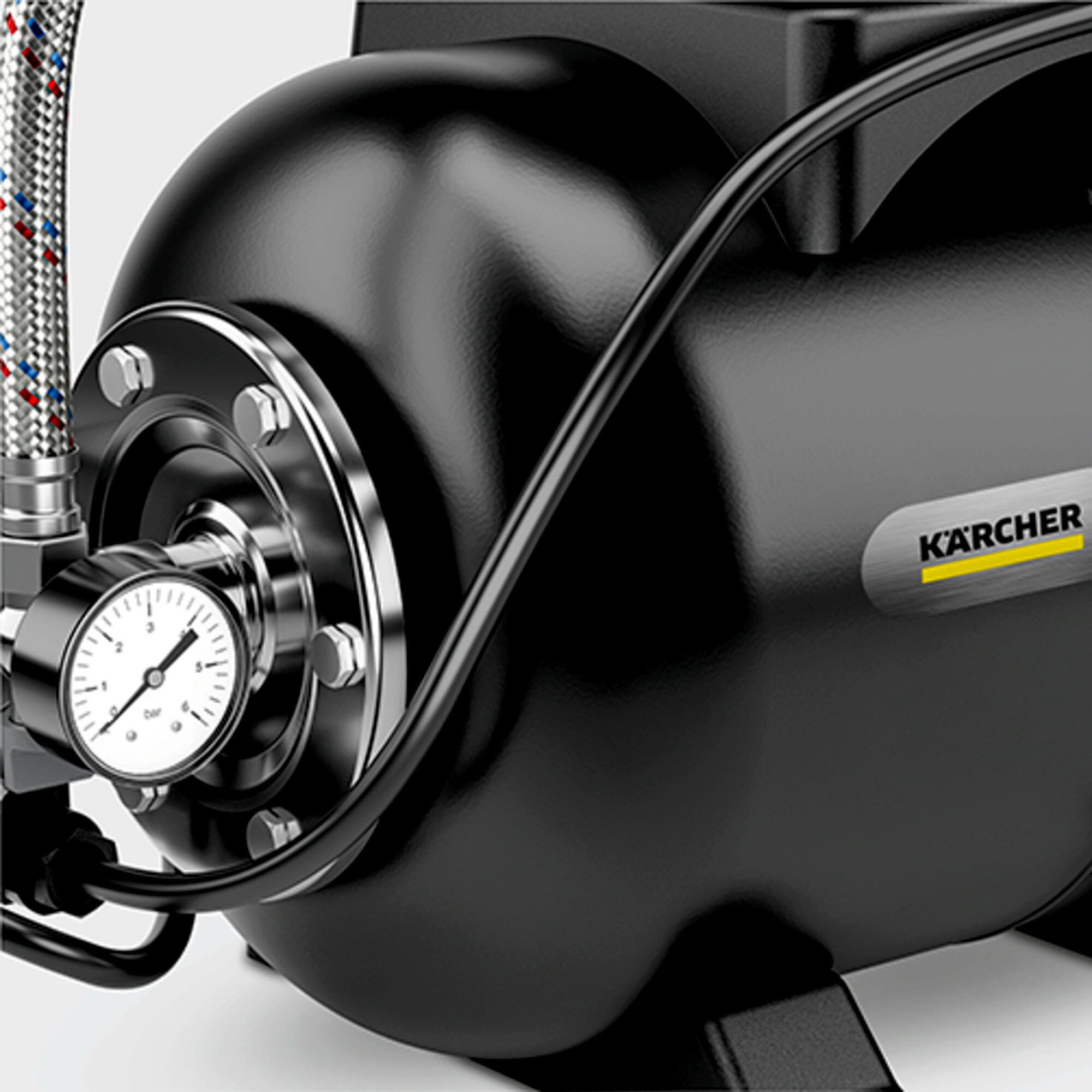

• Integrated pressure gauge
• Splash-proof on/off switch
• Thermal fuse

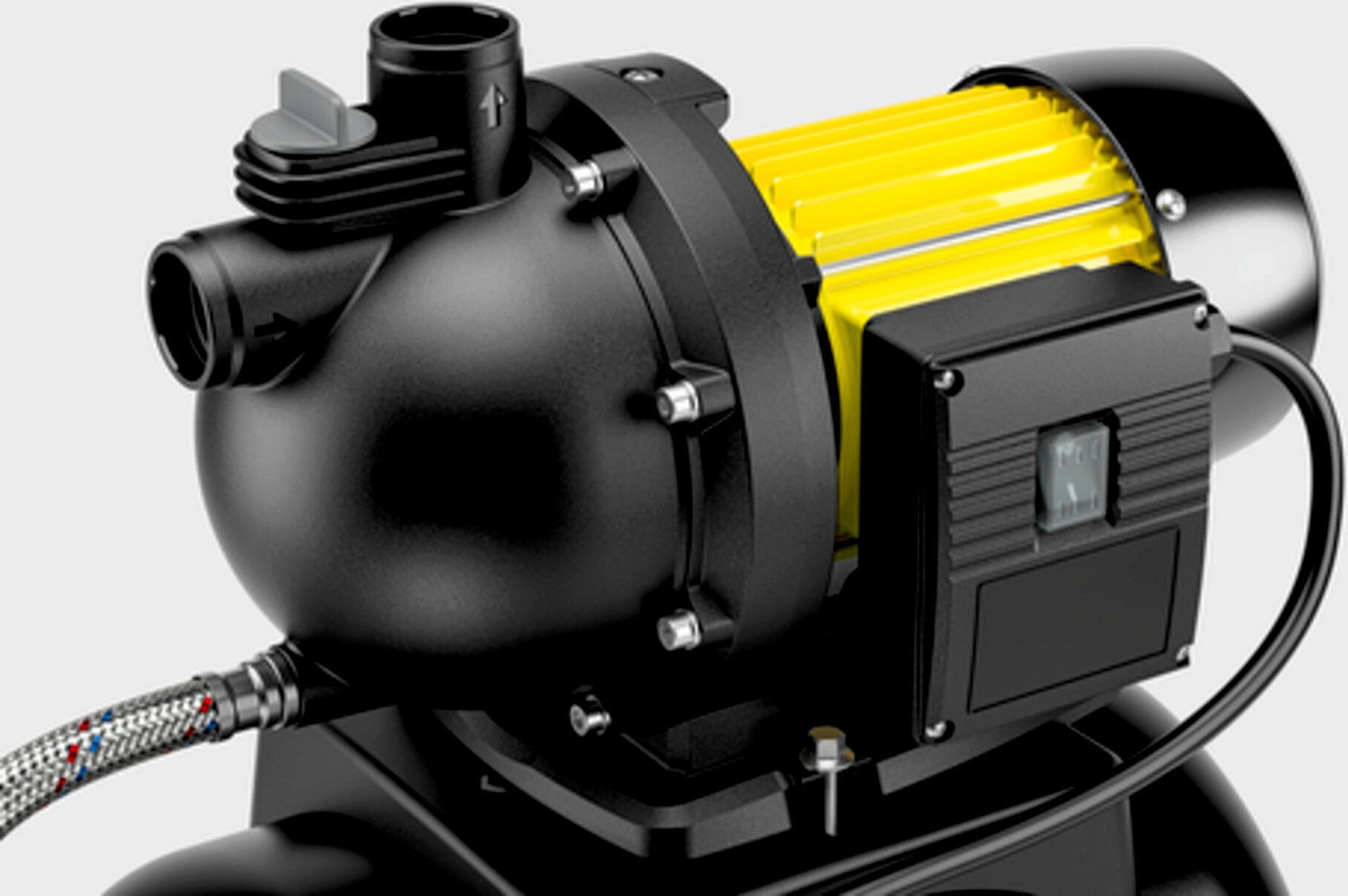

• Stainless steel flange and shaft
• Includes non-return valve
• Separate filling opening
• Water drain valve

Included in the delivery:

• 2 connection adapters for G1 pumps
